When you install computing equipment on a boat or in an exposed industrial environment, moisture, temperature changes, and demanding operating conditions can affect reliability. A 21.5 inch panel pc designed for outdoor and marine applications gives you an integrated computing and touch interface for monitoring equipment, viewing operating data, and controlling compatible systems. However, choosing the right device requires more than checking screen size. You also need to consider waterproof protection, display visibility, touch responsiveness, connectivity, and maintenance requirements. Shenzhen Innoda Technology Co., Ltd. develops customized touch panel products for industrial applications, including waterproof panel PCs and embedded computing systems. Its 21.5-inch stainless steel panel PC combines a capacitive touchscreen, industrial-grade components, and a sealed enclosure to support demanding installation environments. This guide explains its specifications, practical applications, and selection considerations.
Why Choose an Industrial Outdoor Panel PC?
An industrial outdoor panel pc must handle environmental challenges that ordinary office computers may not withstand. On boats and in industrial facilities, equipment may encounter splashing water, damp surfaces, continuous operation, and fluctuating temperatures.
Innoda's 21.5-inch model offers several features that address these requirements:
Stainless steel SS304 housing: Provides a durable enclosure for industrial and marine installations.
IP67 waterproof design: Helps protect the equipment against dust and temporary immersion under the conditions defined by the applicable IP rating.
10-point capacitive touchscreen: Supports multi-touch interaction for compatible applications.
24/7 operation: Industrial-grade components support continuous-duty applications when the system operates within its specified conditions.
Before installation, confirm the required protection level for your specific environment. The product description references IP65, IP67, and IP69K, while the detailed specifications list Full IP65 and the feature description specifies IP67. Ask Innoda to confirm the certified rating for your exact configuration.
Key Specifications of the 21.5 Inch Panel PC
Technical specifications help you determine whether a panel PC meets your application requirements. Review the following details before selecting a configuration.
| Specification | Innoda 21.5-Inch Panel PC |
|---|---|
| Screen size | 21.5 inches |
| Resolution | 1920 × 1080 |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m² standard; 1000 nits optional |
| Touchscreen | 10-point capacitive touch |
| Cover glass | 2 mm chemically strengthened tempered glass |
| Glass hardness | 7H |
| Processor | Intel Celeron J6413, 1.8 GHz |
| Memory | 2 GB–8 GB DDR4 |
| Storage | 64 GB, 128 GB, or 1 TB SSD |
| Operating systems | Windows 7/8/10, Linux, Ubuntu |
| Power input | 12V DC; 9–26V wide-voltage option |
| Operating temperature | -20°C to 70°C |
| Housing | Stainless steel |

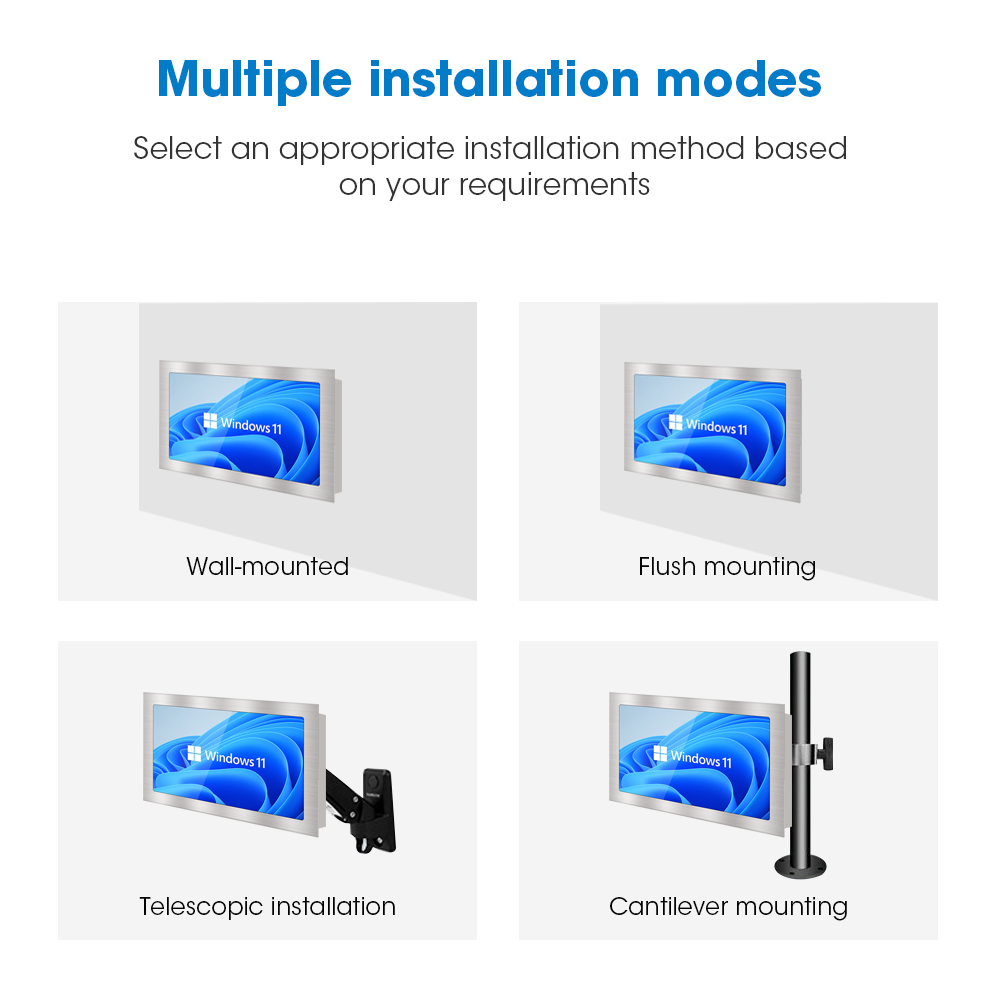

| Mounting | VESA 75 × 75 mm or 100 × 100 mm |
The device also supports USB 2.0 connections, LAN through RJ45, and serial communication through RS232, RS485, or RS422. These interfaces can help you connect compatible industrial controllers, network devices, and monitoring equipment.
For installations exposed to direct sunlight, consider the optional 1000-nit display and anti-glare glass. The standard brightness is 350 cd/m², so you should evaluate actual lighting conditions before choosing a configuration.
How the Waterproof Touchscreen Supports Marine Use
A marine panel PC needs to maintain practical usability when users work around water and moisture. Innoda combines a sealed housing with touchscreen features intended for these conditions.
Touch Operation Around Water
The EETI touch-control solution is designed to support touch input when water droplets are present on the screen. This feature can be useful when operators monitor navigation-related applications, machinery status, or other compatible onboard systems.
The 2 mm chemically strengthened glass has a stated hardness of 7H. Optical bonding between the LCD and touchscreen also helps create an integrated display assembly.
Sealing and Maintenance
The front frame and rear housing use waterproof tape for sealing. According to the product description, technicians can disassemble the unit for inspection and maintenance without compromising its waterproof performance, provided they follow the manufacturer's approved procedures.
After servicing, you should confirm that all seals, connectors, and enclosure components have been correctly reinstalled. The actual protection level depends on the finished assembly and its installation.
Waterproof Panel PC vs. Standard Industrial Panel PC
The right choice depends on the environment in which you plan to operate the equipment.
| Selection Factor | Waterproof Panel PC | Standard Industrial Panel PC |
|---|---|---|
| Environmental protection | Designed for specified water and dust exposure | Depends on the enclosure rating |
| Housing | May use stainless steel or other sealed materials | Often aluminum or other industrial materials |
| Touch operation | May include moisture-tolerant touch technology | Depends on the touchscreen design |
| Typical applications | Boats, wet production areas, exposed installations | Factory automation, control rooms, and dry production areas |
| Selection priority | Protection rating, sealing, and connectors | Processing needs, connectivity, and mounting |
If your installation involves washdown, salt spray, or prolonged exposure to harsh marine conditions, do not assume that an IP rating alone guarantees suitability. Check corrosion resistance, connector protection, installation requirements, and the manufacturer's environmental test documentation.
FAQ
1. Is the Innoda 21.5-inch panel PC suitable for boats?
It is designed with marine-oriented features, including a stainless steel enclosure, capacitive touchscreen, and waterproof construction. Confirm the certified IP rating, corrosion resistance, and suitability for your particular vessel before installation.
2. Can the touchscreen work when water droplets are present?
The product uses an EETI touch-control solution designed to support touch input in the presence of water droplets. Performance can vary with water conditions and installation, so testing in your intended environment is recommended.
3. Can I customize the panel PC for my project?
Shenzhen Innoda Technology Co., Ltd. offers OEM/ODM services and customized touch panel products. Contact the company to discuss your required operating system, memory, storage, brightness, power input, interfaces, and mounting arrangement.
Conclusion
Choosing a 21.5 inch panel pc for marine or outdoor industrial use means balancing display performance, waterproof protection, computing capacity, and long-term maintenance. Innoda's stainless steel model offers Full HD resolution, 10-point capacitive touch, an Intel Celeron J6413 processor, multiple connectivity options, and a stated operating temperature range of -20°C to 70°C. By confirming the required IP rating and selecting the appropriate configuration, you can assess whether this 21.5 inch panel pc fits your application.
Request a Configuration for Your Project
Contact Shenzhen Innoda Technology Co., Ltd. through its official contact page to discuss your marine or outdoor installation. Share your required IP rating, screen brightness, operating system, power input, and mounting dimensions to help the team recommend a suitable OEM/ODM configuration.
