Embedded industrial panel pc solutions help you integrate computing, display and touch control into industrial equipment without installing a separate desktop computer. However, standard computers may struggle in environments exposed to water, dust, temperature changes or continuous operation. Choosing the wrong device can increase maintenance requirements and disrupt production processes.
Shenzhen Innoda Technology Co., Ltd. develops customized industrial touch panel products under its INNODAPC brand, with more than 13 years of industry experience. Its fanless embedded panel PC combines an integrated touchscreen, industrial computing hardware and a sealed enclosure designed for demanding environments. With optional Intel processors, multiple operating system choices and OEM/ODM support, you can configure a system around your equipment, installation space and operational requirements.
Why Choose an Embedded Industrial Panel PC?
An embedded industrial computer integrates computing hardware into a compact system that can be installed directly into machinery, control cabinets or equipment housings. Unlike a conventional desktop setup, an integrated panel PC combines the display, touch interface and computer in one unit.
For industrial buyers, this design offers several practical advantages:
Space-efficient installation: Support for embedded, wall-mounted, desktop and rack-mounted configurations, depending on the selected model.
Direct touch control: A 10-point capacitive touchscreen enables operators to interact with software without a separate keyboard or mouse.
Flexible computing options: Intel Celeron J6412 and J6413 processors are available, alongside other listed processor options.
Industrial connectivity: Configurable I/O options support integration with compatible equipment and control systems.
Simplified system integration: An all-in-one design reduces the need to source a separate computer and monitor.
Therefore, an embedded panel PC can be a practical choice when you need an integrated operator interface for industrial automation, logistics equipment or other specialized applications.

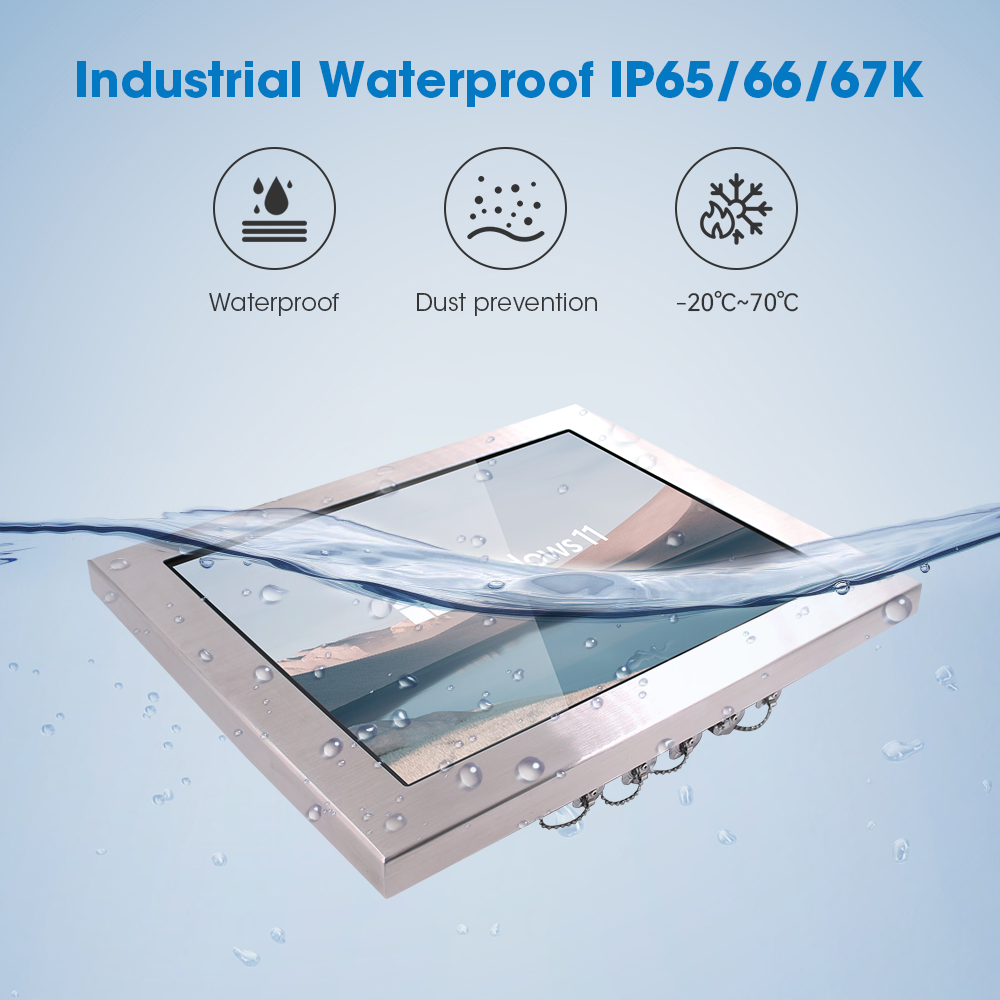

Fanless Panel PC with Stainless Steel IP67 Protection
Environmental protection is an important consideration when selecting a fanless panel PC for industrial applications. Innoda offers a stainless steel SS304 configuration with a stated IP67 waterproof rating, subject to the specifications of the selected model.
Sealed Construction and Touchscreen Protection
The product uses M16 metal waterproof connectors and sealing tape between the front frame and rear housing. Its structure also allows inspection and maintenance without compromising waterproof performance when correctly reassembled and sealed according to the manufacturer's instructions.
Key features include:
SS304 stainless steel enclosure option.
IP67-rated waterproof configuration.
Industrial-grade LCD with a full-viewing-angle design.
2 mm chemically strengthened tempered glass with 7H hardness.
Optical bonding between the touchscreen and LCD.
EETI touch control technology designed to support touch operation when water droplets are present.
Built-in front-facing 12 MP camera.
The optical bonding design integrates the touchscreen and display to improve interface integration. Meanwhile, the strengthened cover glass helps resist surface scratches during normal operation.
Before deployment, confirm the required ingress protection, connector sealing and cleaning procedures with Innoda, particularly if your equipment will face frequent washdowns or exposure to cleaning chemicals.
Intel J6412/J6413 Embedded Panel PC Specifications
Processing performance, memory capacity and connectivity affect how well an industrial computer fits your application. Innoda lists several configurable hardware options for its industrial panel PC range.
| Specification | Available configuration |
|---|---|
| Processor | Intel Celeron J6412/J6413; other listed CPU options |
| Memory | 4 GB standard listing; 8/16/32 GB options |
| Storage | 64 GB SSD listing; other capacities available |
| Operating system | Linux, Ubuntu and Windows options |
| Touchscreen | Capacitive touch; other touch technologies optional |
| I/O interfaces | USB, HDMI, RJ45, VGA and RS232 options |
| Power input | DC 12 V or 110–240 V AC input |
| Mounting | Embedded, wall, desktop or rack mount options |
| Display sizes | Multiple sizes; confirm the exact model before ordering |
The product title highlights 10-, 12-, 15-, 17- and 19-inch options. However, the supplied specification sheet also references other display sizes. Confirm the available screen size, processor, operating system and interface combination before finalizing your purchase.
The product description states a wide operating temperature range of -20°C to 70°C, while the specification table lists -20°C to 60°C. Ask Innoda to confirm the rated temperature range for your selected configuration.
Industrial Applications for Embedded Touch Panel PCs
A waterproof industrial panel PC can support applications where operators need an integrated interface and a protected enclosure.
Common use cases include:
Industrial automation: Display machine status, production data and operator controls.
Food and beverage processing: Provide a touchscreen interface in suitable processing environments, subject to hygiene and cleaning requirements.
Transportation and logistics: Support warehouse terminals, equipment monitoring and logistics workflows.
Marine equipment: Integrate computing and touch control into compatible shipboard systems.
Gas stations and oil fields: Provide an operator interface for suitable monitoring and control equipment.
IoT systems: Display equipment data and connect with compatible industrial networks.
The appropriate configuration depends on ambient conditions, mounting space, required interfaces and the software you intend to run.
How to Select the Right Embedded Industrial Panel PC
Follow these steps to narrow down your requirements before requesting a quotation.
Define the installation environment. Identify exposure to water, dust, vibration, cleaning agents and temperature extremes.
Choose the display size. Measure the available mounting space and select a suitable screen size.
Confirm processing requirements. Determine whether an Intel J6412/J6413 system meets your software and workload needs.
List required interfaces. Specify USB, Ethernet, RS232, HDMI or other interfaces needed to connect your equipment.
Select the operating system. Check software compatibility with Windows, Linux or Ubuntu.
Confirm protection and customization. Request confirmation of the IP rating, connectors, mounting method and any OEM/ODM modifications.
This process helps you avoid paying for unnecessary features while ensuring that the computer fits your application.
FAQ
1. Is the embedded industrial panel PC waterproof?
The described stainless steel configuration is rated IP67. Confirm the rating for your selected model and follow the manufacturer's installation and sealing instructions.
2. Can I customize the processor, memory and operating system?
Innoda lists multiple processor, memory, storage and operating system options. Contact the company to confirm compatibility and availability for your required configuration.
3. Can a fanless panel PC operate continuously?
The product description specifies industrial-grade components and support for 24/7 operation. Actual suitability depends on the selected configuration, ambient temperature, workload and installation conditions.
Conclusion
Selecting an embedded industrial panel pc requires more than matching screen size and processor specifications. You should also evaluate enclosure protection, touchscreen durability, connectivity, mounting requirements and operating temperature. Shenzhen Innoda Technology Co., Ltd. provides configurable industrial panel PCs, including fanless designs and stainless steel IP67 options, to support a range of industrial applications. Confirming the exact configuration before purchase will help you choose a system that meets your operational requirements.
