Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 17'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

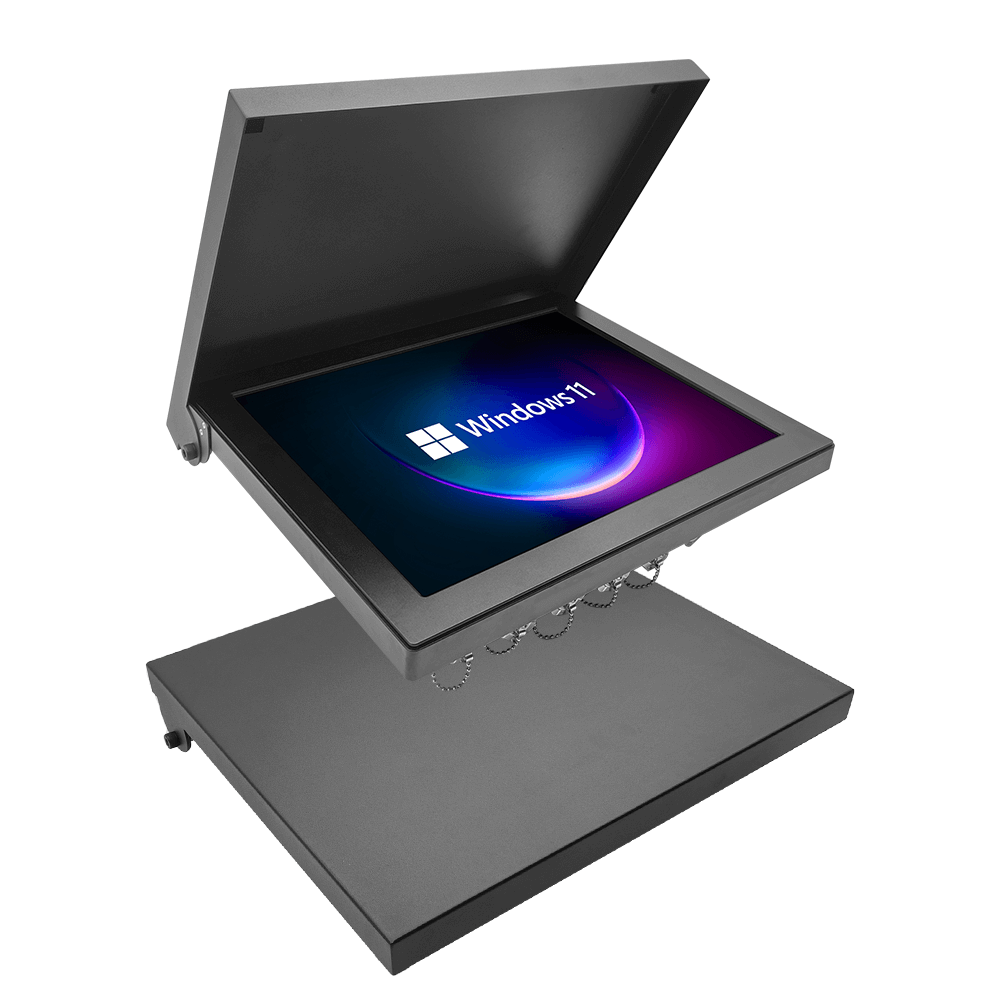

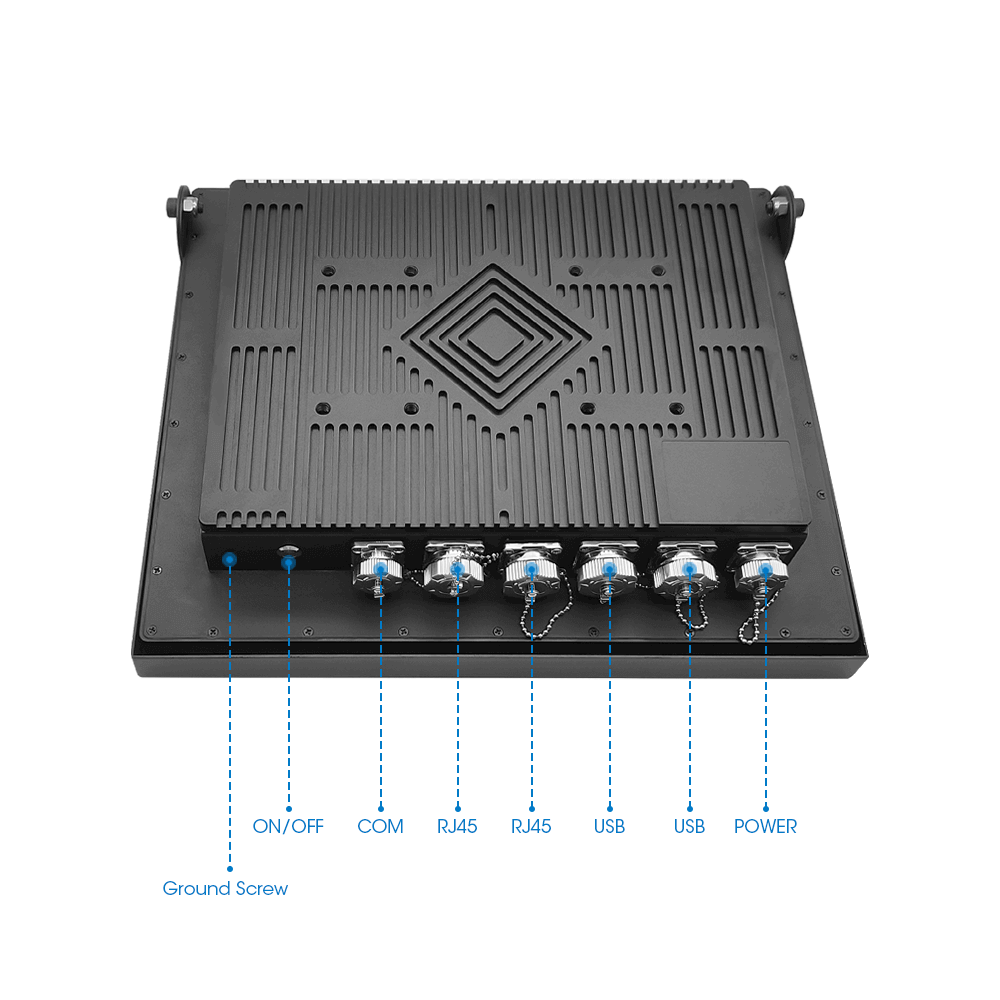

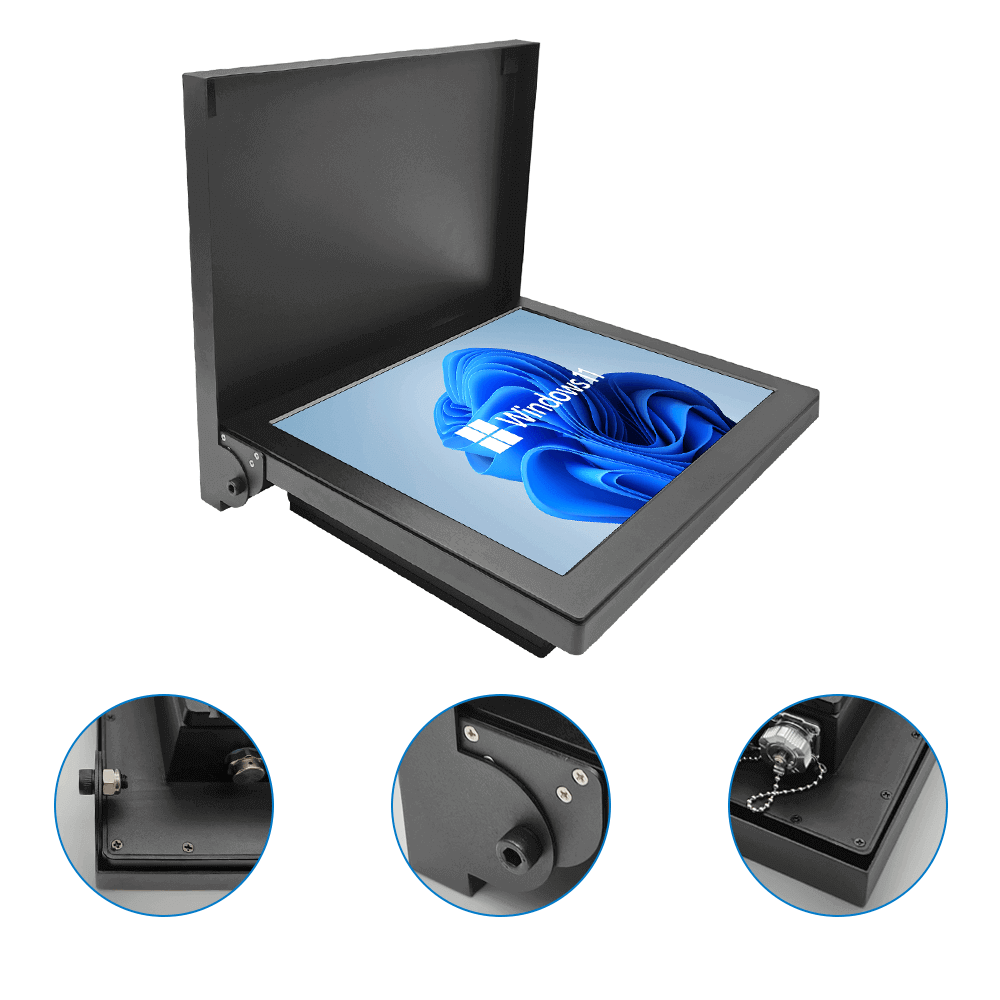

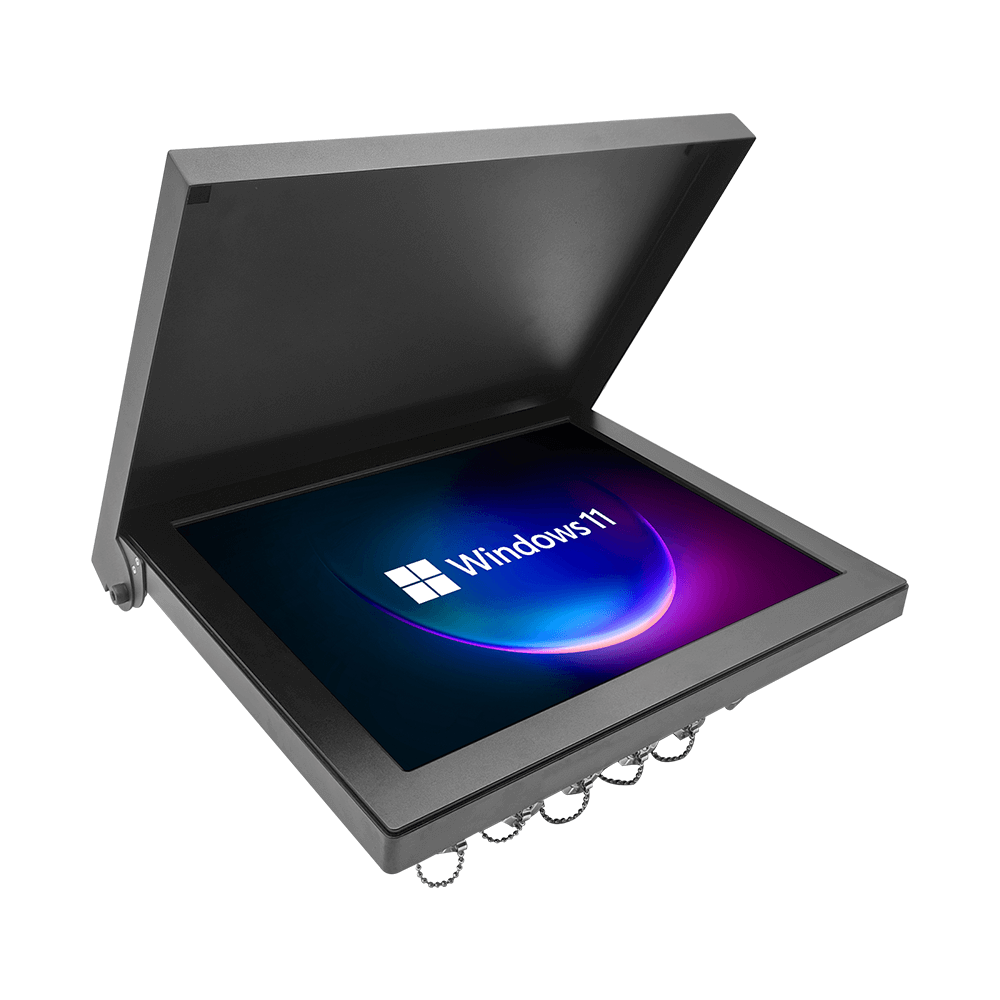

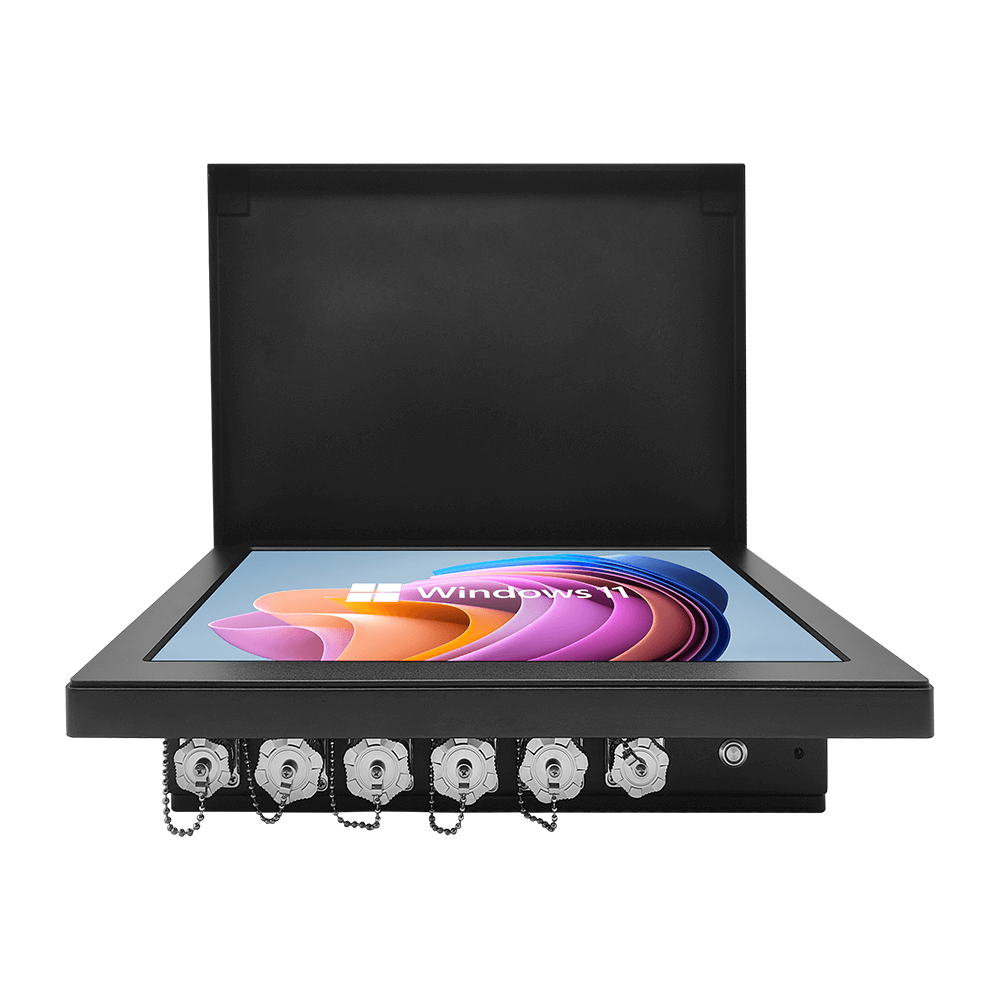

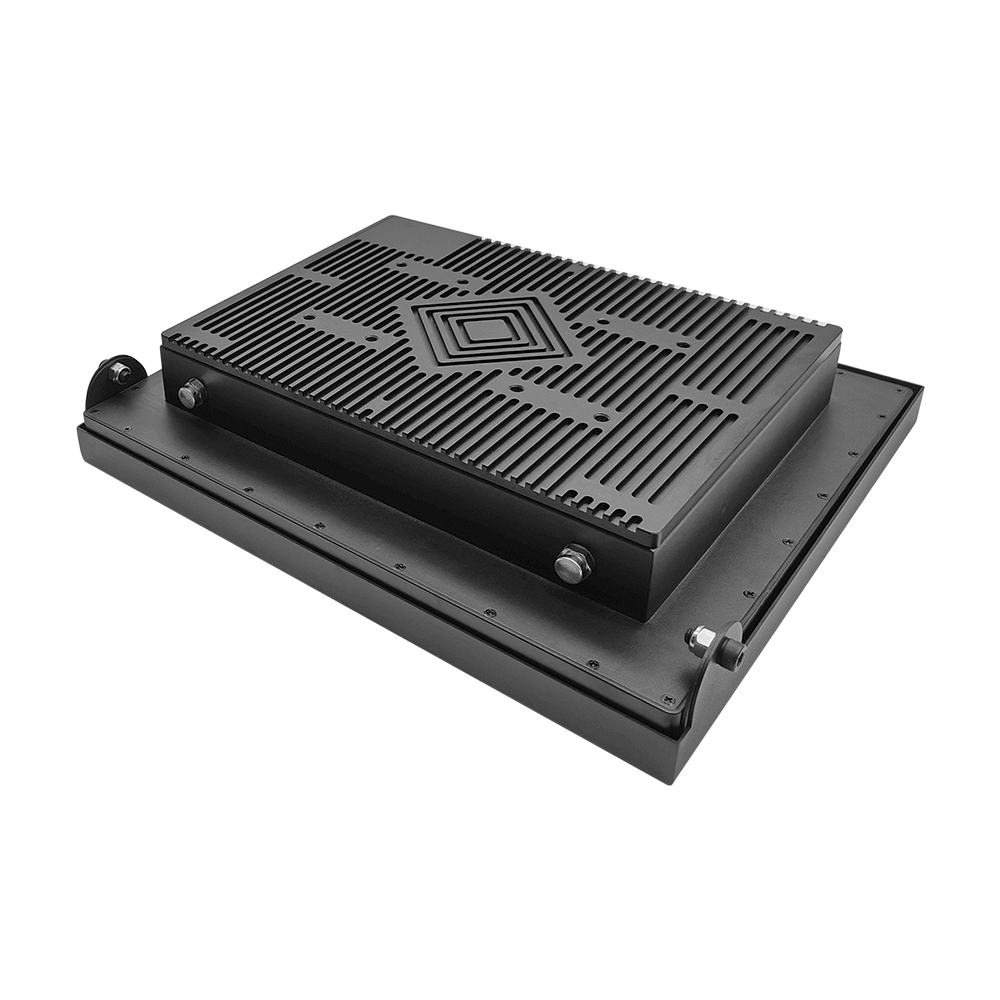

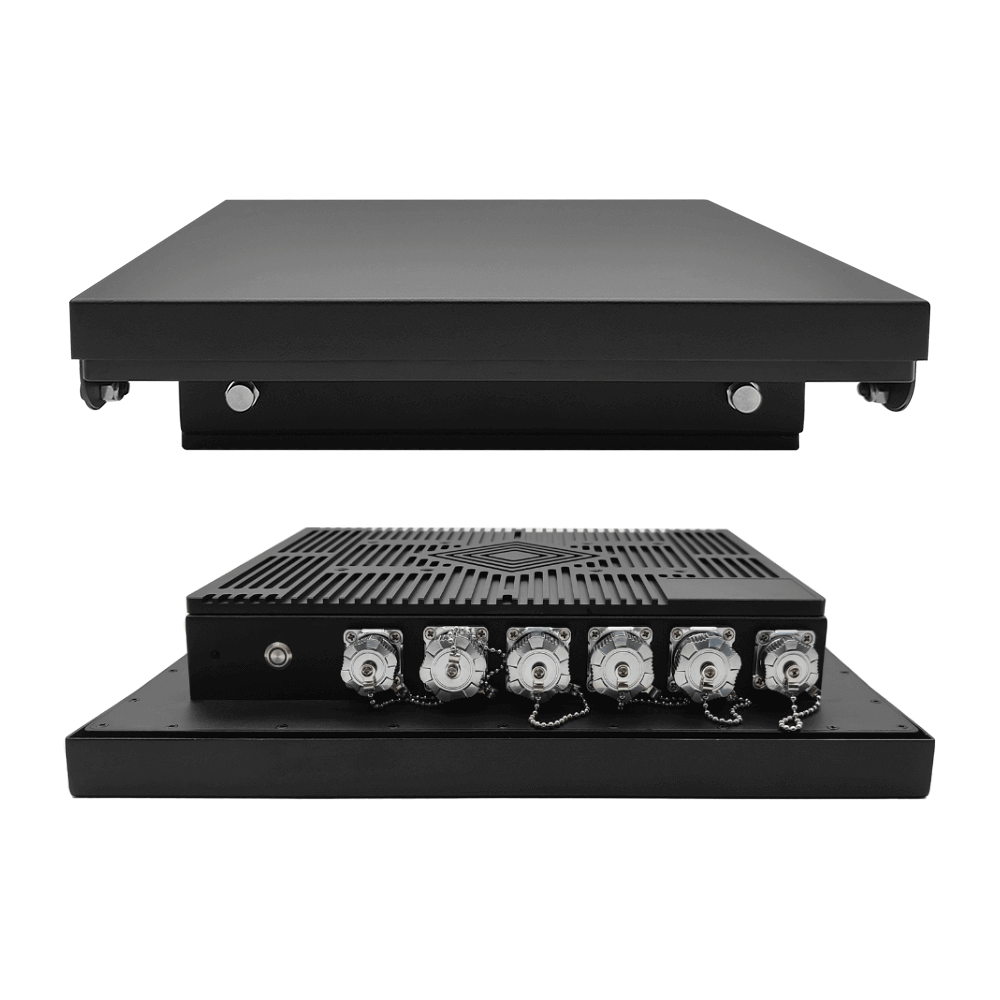

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Introducing our cutting-edge Industrial Touch Panel PC - the Touch Panel PC designed to meet the demands of industrial environments with its robust features and reliable performance.
Equipped with a high-quality Capacitive Touch Screen, this Industrial Touch Panel PC offers a seamless and intuitive user experience. The 17-inch screen size provides ample display area for improved visibility and interaction.
When it comes to storage options, the Industrial Touch Panel PC offers flexibility with choices ranging from 128GB, 256GB, 512GB to 1TB SSD. This ensures that you have sufficient storage space for your data-intensive industrial applications and processes.
Furthermore, the Industrial Touch Panel PC boasts impressive memory configurations of 8GB, 16GB, and 32GB, allowing for smooth multitasking and efficient operation of various software applications.
Designed to withstand the rigors of industrial settings, this Industrial Touch Panel PC is built to deliver reliable performance even in challenging conditions. Its durable construction and rugged design make it ideal for use in manufacturing facilities, warehouses, control rooms, and other industrial environments.
Whether you are monitoring production processes, managing inventory, or controlling machinery, the Industrial Touch Panel PC provides the functionality and durability required to support your critical operations.
With its sleek and modern design, the Industrial Touch Panel PC not only offers high performance but also adds a touch of sophistication to your industrial workspace. Its compact form factor saves valuable space while enhancing the overall aesthetics of your setup.
Experience enhanced productivity and efficiency with the Industrial Touch Panel PC's responsive touch screen interface, which allows for quick and precise input, navigation, and control. Say goodbye to cumbersome peripherals and enjoy a clutter-free work environment.
Stay ahead of the curve with our feature-rich Industrial Touch Panel PC that combines advanced technology with rugged durability. Whether you are in the manufacturing, logistics, or automation industry, this versatile panel pc is your reliable partner for streamlining operations and maximizing productivity.
Invest in the future of industrial computing with the Industrial Touch Panel PC that offers unparalleled performance, reliability, and durability. Upgrade your operations with a cutting-edge solution that is designed to meet the evolving needs of the industrial sector.
Features:
· Product Name: Industrial Touch Panel PC
· Warranty: 1 Year
· Operating System: Win 10/11/Linux
· Screen Size: 17 Inch
· Resolution: 1280*1024
· Product Name: Touch Panel PC
Technical Parameters:
Storage | 128G/256G/512BG/1TB SSD |
Operating System | Win 10/11/Linux |
Interface Type | HDMI/COM/USB/RJ45/Audio JACK/DP |
Warranty | 1 Year |
Screen Size | 17 Inch |
Brightness | 350-1500 Nits |
Touch Screen | Capacitive Touch Screen |
Memory | 8GB/16GB/32GB |
Resolution | 1280*1024 |
Product Name | Touch Panel PC |
Applications:
INNODA's IND170PC Industrial Touch Panel PC is a versatile and robust computing solution designed for a wide range of industrial applications. With its durable construction and advanced features, this panel PC is ideal for use in various industries and scenarios.
One of the key product attributes of the IND150PC is its rugged design, making it suitable for harsh industrial environments. It is certified with CE, RoHS, FCC, IP65, IP66, and IP67 ratings, ensuring reliable performance even in challenging conditions.
Whether it's in manufacturing plants, warehouses, control rooms, or outdoor facilities, the Industrial Touchscreen Panel PC can meet the demands of different industrial settings. Its 15-inch capacitive touch screen provides intuitive and responsive interaction, allowing users to operate the device with ease.
Thanks to its compatibility with various operating systems such as Windows 10/11 and Linux, the IND150PC offers flexibility in software integration, making it adaptable to different industrial processes and applications. The memory options of 8GB, 16GB, and 32GB provide ample storage space for running multiple tasks simultaneously.
INNODA's Industrial Touch Panel PC is equipped with a one-year warranty, giving customers peace of mind and assurance of product quality. The minimum order quantity of 1 piece and a supply ability of 3000 pieces per month make it convenient for businesses of all sizes to procure this reliable computing solution.
With a delivery time of 25 working days upon receiving payment and flexible payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram, acquiring the IND150PC is convenient and efficient for customers worldwide. The packaging details of 1pc/carton with a weight of 7kgs/pc and packing size of 45×35×12cm ensure safe and secure shipping of the product.
Customization:
Product Customization Services for the Industrial Touch Panel PC:
Brand Name: INNODA
Model Number: IND170PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65, IP66, IP67
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 3000 pieces per month
Touch screen: Capacitive Touch Screen
Warranty: 1 Year
Operating System: Win 10/11/Linux
Brightness: 350-1500 Nits
Screen size: 17 Inch
Support and Services:
Our Industrial Touch Panel PC product comes with comprehensive Product Technical Support and Services to ensure smooth operation and customer satisfaction. Our dedicated technical support team is available to assist with any product-related inquiries, troubleshooting, and maintenance needs.
Our services include product installation support, software updates, warranty assistance, and on-site repair services if needed. We are committed to providing timely and effective support to maximize the performance and lifespan of our Industrial Touch Panel PC product.
Packing and Shipping:
Product Packaging and Shipping:
Our Industrial Touch Panel PC is carefully packaged to ensure safe delivery to our customers. Each unit is securely wrapped in protective materials to prevent any damage during transportation.
For shipping, we work with reliable carriers to guarantee timely and efficient delivery. Our team carefully tracks each shipment to ensure our customers receive their orders in perfect condition and on time.
