Fully enclosed design, the whole PC is dustproof.

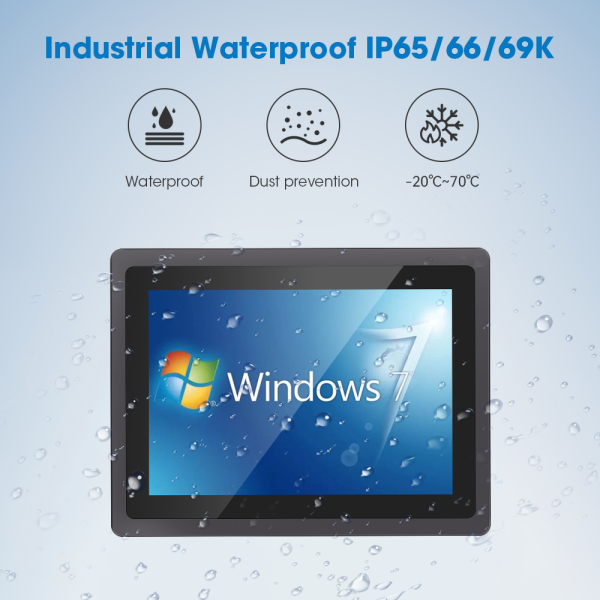

Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

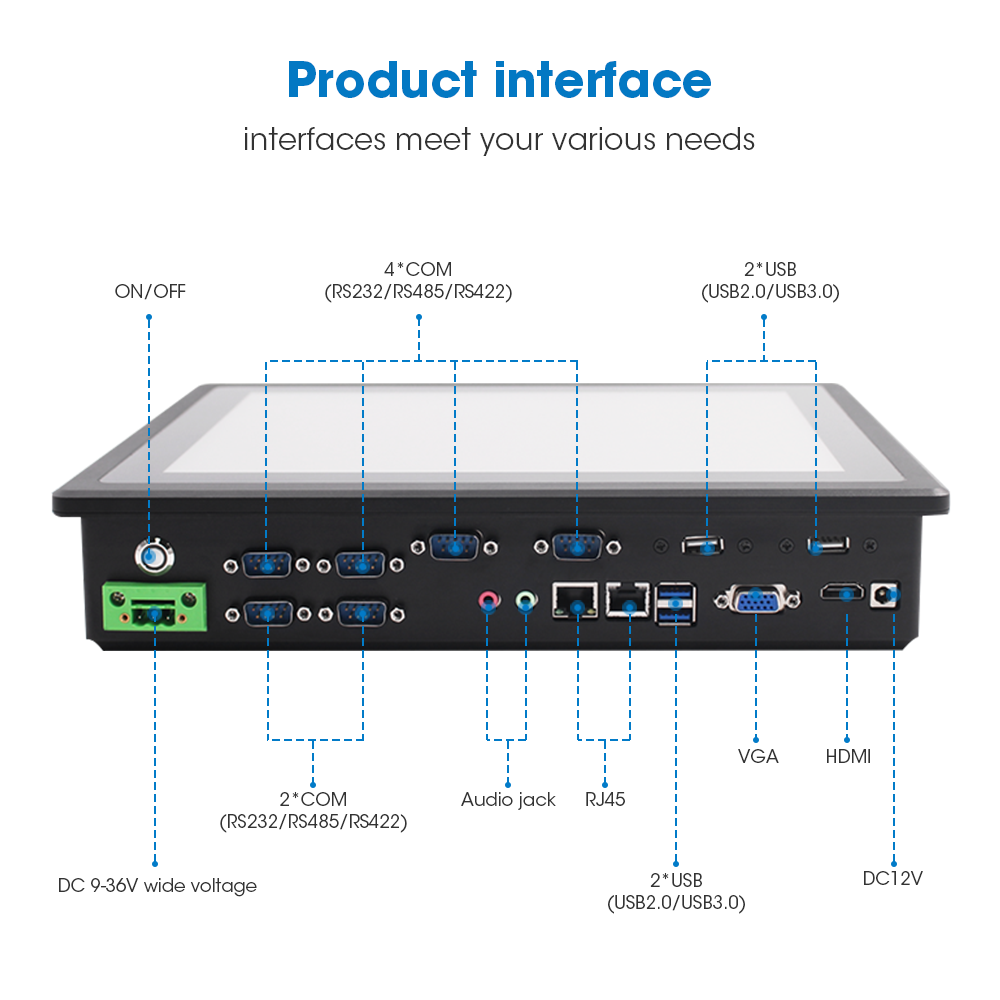

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

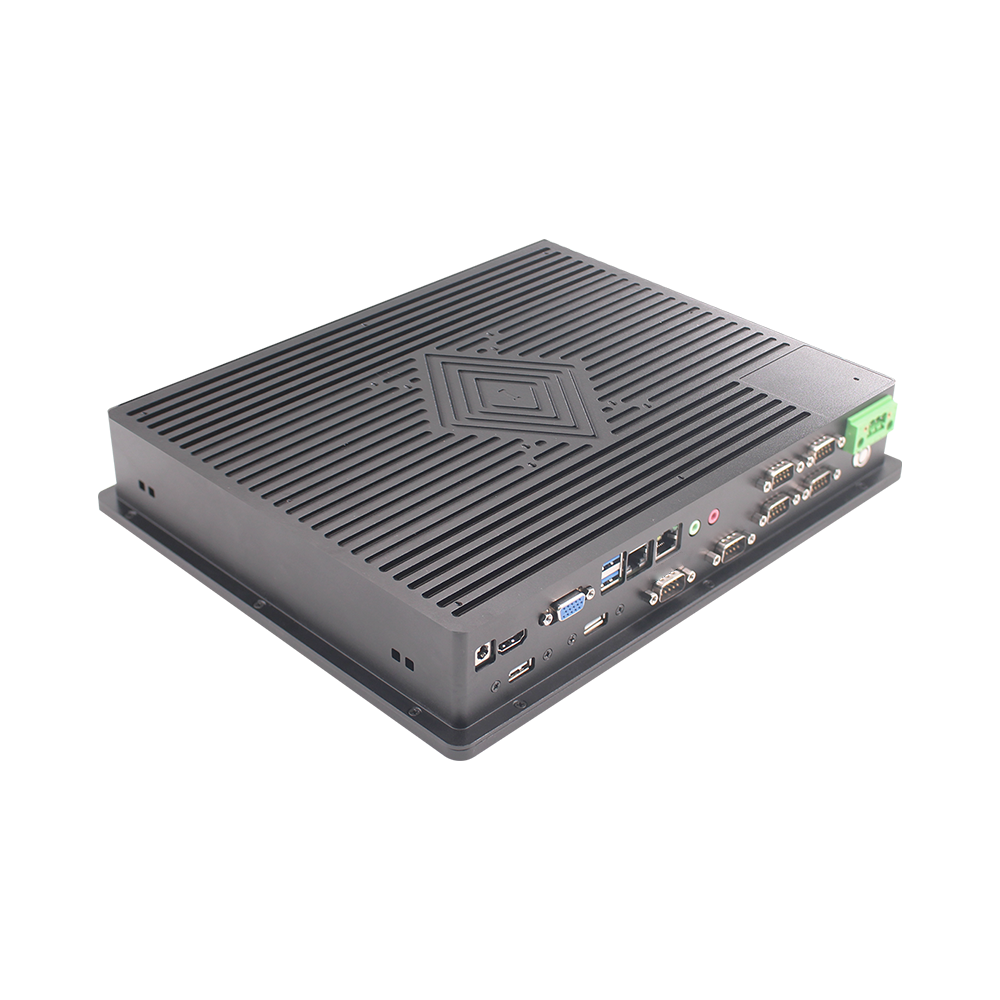

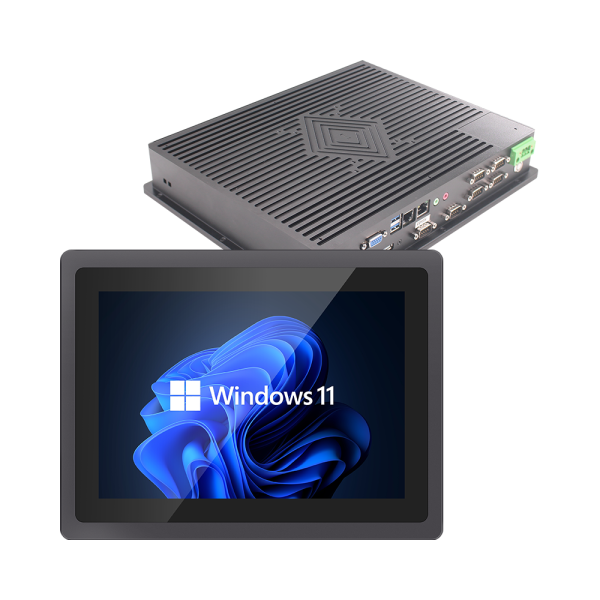

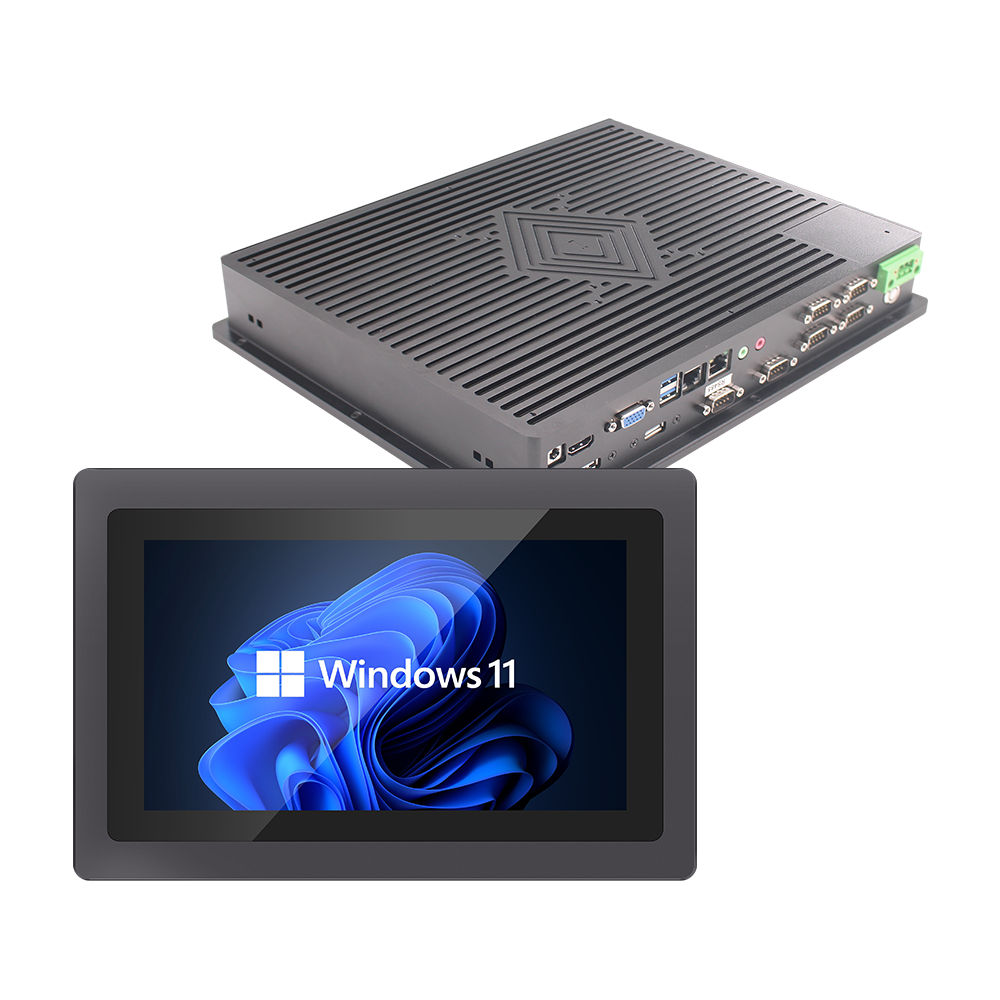

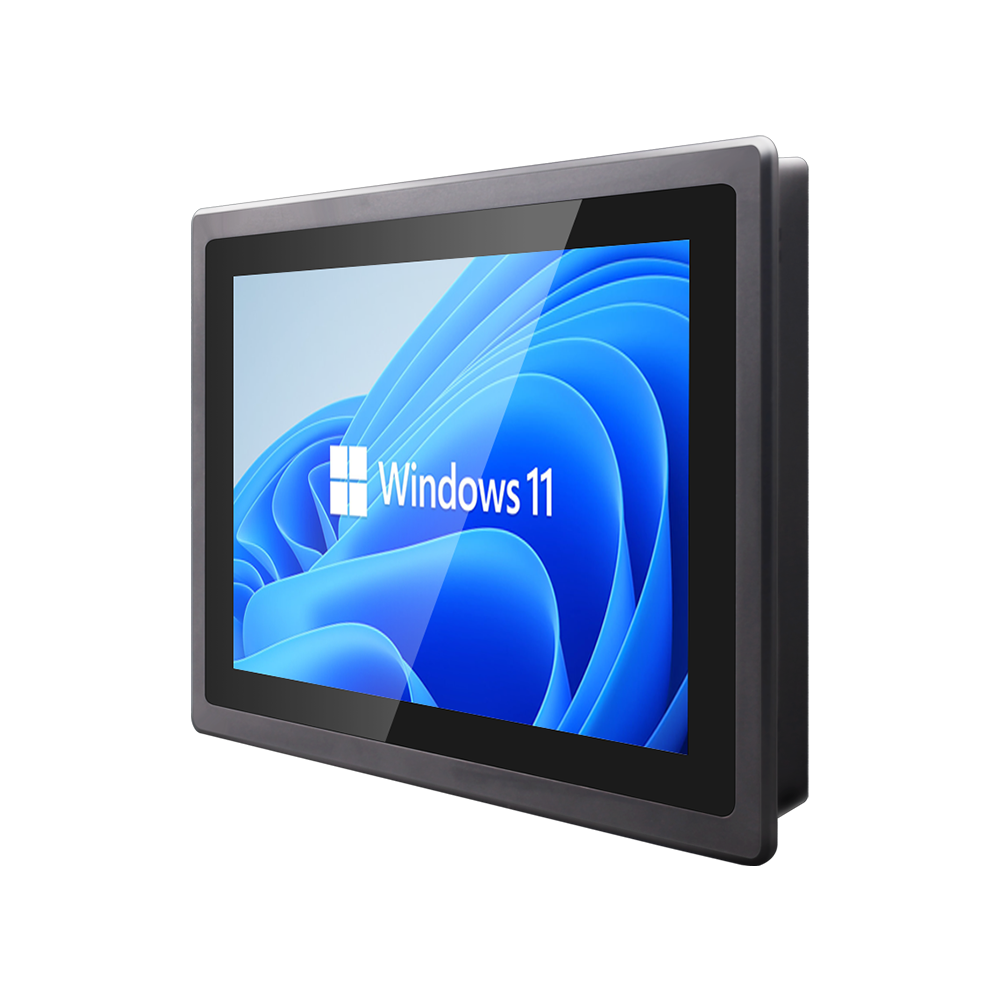

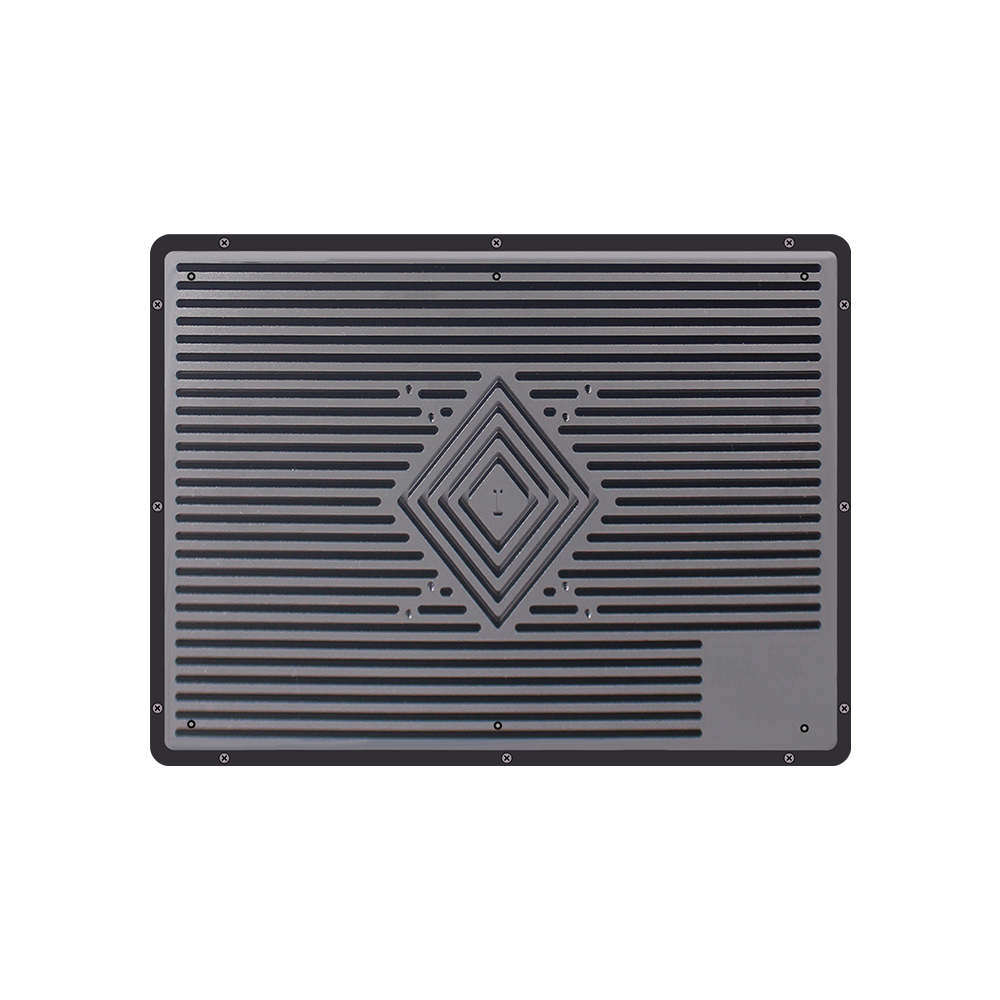

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Industrial Touch Panel PC is powered by a choice of operating systems, including Windows 10, Windows 11, and Linux, providing users with flexibility and compatibility to meet diverse software requirements. With a resolution of 1280 x 1024 pixels, this touch panel PC delivers sharp and clear visuals, ensuring optimal display quality for critical industrial processes.
Featuring a brightness range of 350 to 1500 nits, the Industrial Touch Panel PC excels in environments with varying lighting conditions, maintaining excellent visibility and readability even in bright or dim settings. Whether used indoors or outdoors, this touch panel PC offers superior screen visibility for enhanced productivity and user experience.
The Touch Panel PC is engineered to withstand the rigors of industrial environments, with a durable construction that can endure harsh conditions such as dust, vibrations, and temperature fluctuations. Its rugged design ensures long-term reliability and stability, making it an ideal choice for demanding industrial applications that require continuous operation and durability.
Equipped with advanced features and connectivity options, the Industrial Touch Panel PC offers versatile integration capabilities to suit a wide range of industrial automation and control systems. With multiple I/O ports, expansion slots, and wireless connectivity options, this touch panel PC enables seamless connectivity with various peripherals and devices, enhancing operational efficiency and productivity.
Designed for easy installation and maintenance, the Industrial Touch Panel PC is user-friendly and intuitive, allowing for quick setup and configuration. Its sleek and compact design makes it suitable for space-constrained environments, while its robust build ensures long-term performance and reliability in demanding industrial settings.
In summary, the Industrial Touch Panel PC is a versatile and reliable solution for industrial applications that require a high-performance touch panel PC with rugged durability, advanced features, and flexible connectivity options. With its capacitive touch screen, choice of operating systems, high resolution, and superior brightness, this touch panel PC delivers exceptional functionality and usability for a wide range of industrial automation and control tasks. Trust the Industrial Touch Panel PC to meet your industrial computing needs with efficiency, durability, and precision.
Features:
· Product Name: Industrial Touch Panel PC
· Interface Type: HDMI/COM/USB/RJ45/Audio JACK/DP
· Brightness: 350-1500 Nits
· Warranty: 1 Year
· Storage: 128G/256G/512BG/1TB SSD
· Memory: 8GB/16GB/32GB
Technical Parameters:
Operating System | Win 10/11/Linux |
Screen Size | 15 Inch |
Resolution | 1280*1024 |
Product Name | Touch Panel PC |
Memory | 8GB/16GB/32GB |
Interface Type | HDMI/COM/USB/RJ45/Audio JACK/DP |
Brightness | 350-1500 Nits |
Storage | 128G/256G/512BG/1TB SSD |
Touch Screen | Capacitive Touch Screen |
Warranty | 1 Year |
Applications:
INNODA's IND150PC Industrial Touch Panel PC is a cutting-edge technology product that caters to a wide range of industrial applications due to its robust features and capabilities. Designed and manufactured in Shenzhen, China, this touch screen panel PC is widely recognized for its quality and reliability.
With certifications including CE, RoHS, FCC, IP65, IP66, and IP67, the IND150PC ensures compliance with industry standards and regulations, making it suitable for various industrial environments. The minimum order quantity of 1 piece makes it accessible for businesses of all sizes, while the packaging details guarantee safe delivery with each unit weighing 7kgs and dimensions of 45×35×12cm.
The INNODA IND150PC is ideal for a multitude of product application occasions and scenarios. Its supply ability of 3000 pieces per month ensures continuous availability for industrial settings requiring multiple units. The memory options of 8GB, 16GB, and 32GB, coupled with storage choices ranging from 128G to 1TB SSD, provide flexibility to meet diverse computing needs.
Equipped with a 15-inch capacitive touch screen, the IND150PC offers a user-friendly interface for seamless interaction and operation. Whether running on Windows 10, Windows 11, or Linux operating systems, this industrial touch panel PC delivers optimal performance and efficiency.
Businesses in manufacturing, automation, transportation, healthcare, and more can benefit from the IND150PC's advanced features and capabilities. Its rugged design and durability make it suitable for demanding industrial environments where reliability is paramount. Additionally, the quick delivery time of 25 working days upon payment receipt ensures timely deployment.
Payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram offer convenience and flexibility for procurement. The INNODA IND150PC stands out as a versatile and dependable solution for industrial touch screen panel PC requirements, meeting the needs of modern industries with cutting-edge technology and performance.
Customization:
Product Customization Services for the Industrial Touch Panel PC:
Brand Name: INNODA
Model Number: IND150PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65, IP66, IP67
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 3000 pieces per month
Memory: 8GB/16GB/32GB
Touch screen: Capacitive Touch Screen
Storage: 128G/256G/512BG/1TB SSD
Warranty: 1 Year
Screen Size: 15 Inch
Support and Services:
Our Industrial Touch Panel PC product comes with comprehensive technical support and services to ensure smooth operation and user satisfaction. Our team of experts is available to assist with any product-related inquiries, troubleshooting, and maintenance needs.
Our services include product installation assistance, firmware updates, technical documentation, and warranty support. We are committed to providing timely and effective solutions to meet the needs of our customers and maximize the performance of our touch panel PC.
Packing and Shipping:
Product Packaging:
The Industrial Touch Panel PC is carefully packaged to ensure its safety during transportation and handling. It is enclosed in a sturdy cardboard box with ample cushioning materials such as foam inserts and bubble wrap to prevent any damage.
Shipping:
Once your order is confirmed, the Industrial Touch Panel PC will be shipped to your address via a reputable courier service. You will receive a tracking number to monitor the shipment progress. Please ensure someone is available to receive the package upon delivery.
