An industrial monitor 1000 nits offers a practical solution when standard displays become difficult to read under direct sunlight or bright ambient lighting. For marine equipment, outdoor control stations, and industrial terminals, you need more than a bright screen. Water exposure, temperature changes, glare, and continuous operation can also affect display performance and usability.
Shenzhen Innoda Technology Co., Ltd. (INNODA) provides high-brightness industrial touch screen monitors designed for demanding environments. Available in 15.6-inch, 18.5-inch, and 21.5-inch sizes, this display series combines 1000–1500 nits brightness, a sealed enclosure design, and optional touch technologies. With HDMI, USB, and 12V DC power interfaces, it supports integration into various industrial systems. If you are sourcing a sunlight-readable monitor for marine or outdoor applications, understanding its brightness, protection options, and installation requirements will help you select the right configuration.
Why Choose an Industrial Monitor 1000 Nits?
A conventional monitor may struggle when sunlight washes out screen content. By contrast, an industrial monitor with 1000–1500 nits brightness provides stronger illumination for applications exposed to high ambient light.
INNODA's sunlight-readable LCD monitor is designed to help operators view information more clearly in bright environments. Its anti-glare treatment and optical bonding technology can further improve outdoor viewing, depending on the final display configuration.
Key features include:
High brightness: 1000–1500 nits for demanding lighting conditions.
Full HD resolution: 1920 × 1080 for clear text, images, and operating interfaces.
Touchscreen options: Projected capacitive, resistive, infrared, and SAW technologies are available.
Optical bonding: Helps reduce internal reflections and improve display readability.
Sealed enclosure: Designed for applications where water and dust protection matter.
Continuous operation: A high-performance mainboard supports 24/7 operation.
Marine and Outdoor Waterproof Industrial Monitor Features
Marine environments can expose displays to water splashes, changing temperatures, and challenging lighting. Therefore, selecting a suitable industrial monitor requires evaluating its brightness, enclosure protection, and touch response together.
Waterproof Design and Touch Performance
The monitor features an all-metal enclosure, a sealing design, and sealed I/O connections with a cable set included. The product specification identifies IP66 protection in its title, while the product description also references IP67. Because protection ratings depend on the tested configuration, confirm the applicable IP rating for your selected model before installation.
INNODA also offers a waterproof touch solution using EETI technology. This can help maintain touch operation when water droplets are present on the screen, which is useful for marine control stations and outdoor equipment. Actual performance depends on the selected touchscreen configuration and operating conditions.
Technical Specifications at a Glance
| Specification | Product Details |
|---|---|
| Screen sizes | 15.6, 18.5, 21.5 inches |
| Brightness | 1000–1500 nits |
| Resolution | 1920 × 1080 |
| Aspect ratio | 16:9 |
| Touch options | Capacitive, resistive, IR, SAW |

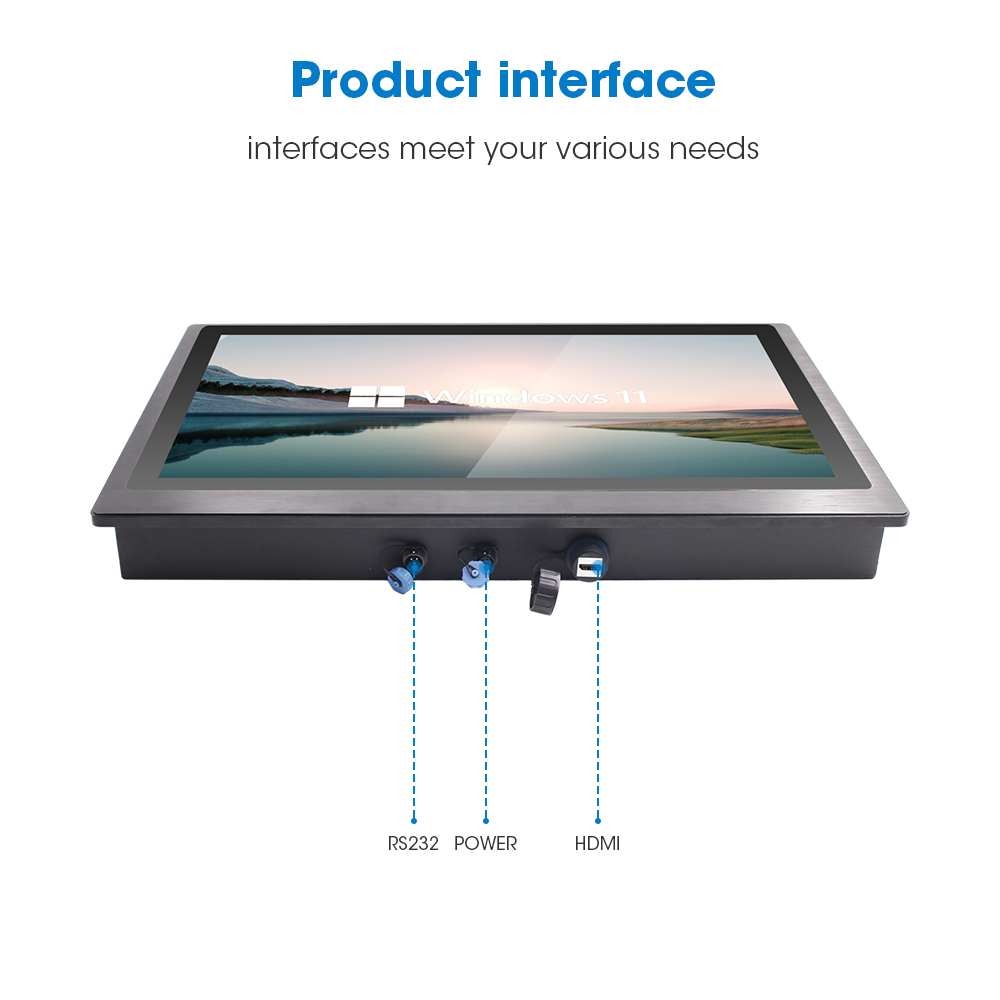

| Interfaces | HDMI, USB 2.0, optional USB 3.0, VGA, 12V DC |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -30°C to 80°C |
| Mounting | VESA 75 × 75 / 100 × 100 mm |
| Enclosure | Aluminum alloy, stainless steel, or metal |
| Protection rating | Confirm the applicable IP rating for the selected configuration |
Industrial Monitor vs. Standard Commercial Monitor
| Feature | INNODA Industrial Monitor | Standard Commercial Monitor |
|---|---|---|
| Brightness | 1000–1500 nits | Varies by model |
| Water protection | Sealed design; IP rating must be verified | Depends on the model |
| Touch options | Multiple technologies available | Depends on the model |
| Temperature range | -20°C to 70°C operating | Depends on the model |
| Mounting | Multiple industrial mounting options | Often desktop-oriented |
For outdoor projects, compare the actual specifications rather than relying on product category alone. A suitable enclosure rating, readable brightness, and compatible mounting system are essential selection criteria.
How to Select the Right High-Brightness Industrial Monitor
Follow these steps to match the display to your application.
Assess ambient lighting. Choose a 1000–1500 nits monitor when your installation faces strong sunlight or intense outdoor lighting. Consider viewing angles and glare as well.
Confirm environmental protection. Identify exposure to rain, splashes, dust, and cleaning procedures. Verify the tested IP rating of the complete monitor and its connected cables.
Choose the screen size. Compare 15.6-inch, 18.5-inch, and 21.5-inch displays against your available installation space and viewing distance.
Select the touchscreen technology. Capacitive touch suits many interactive interfaces, while other technologies may better match specific operating requirements. Confirm water-handling performance for your chosen option.
Applications of INNODA Industrial Touch Screen Monitors
An industrial monitor 1000 nits can support a range of applications where standard displays may not provide sufficient visibility or environmental protection.
Potential applications include:
Marine equipment: Navigation-related interfaces, vessel monitoring terminals, and onboard control systems, subject to marine-specific qualification requirements.
Outdoor industrial control: Operator interfaces and equipment monitoring stations.
Transportation systems: Outdoor information terminals and control interfaces.
Industrial automation: Touchscreen interfaces for machinery and process monitoring.
Outdoor kiosks: Interactive displays in locations exposed to bright ambient light.
Shenzhen Innoda Technology Co., Ltd. specializes in customized touch panel products and offers OEM/ODM manufacturing capabilities. Its product portfolio includes industrial monitors, fanless industrial Panel PCs, waterproof touch Panel PCs, embedded computers, and Android touch systems.
The company states that its products hold CE, RoHS, and FCC certifications, along with IP-rated options. Verify the applicable certificates and ratings for the specific monitor before procurement.
FAQ
1. Is a 1000-nit industrial monitor suitable for outdoor use?
A 1000-nit display can improve readability in bright outdoor environments. However, direct-sunlight performance also depends on anti-glare treatment, optical bonding, viewing angle, and screen placement.
2. Is this industrial monitor waterproof?
The product is described with a sealed enclosure and IP66/IP67 protection references. Confirm the exact certified rating for the selected model, including connectors and cable arrangements, before exposing it to water.
3. Can INNODA customize screen sizes and interfaces?
INNODA states that it supports customized touch panel products and OEM/ODM projects. The listed standard sizes are 15.6, 18.5, and 21.5 inches, while other sizes and interface configurations should be confirmed with the manufacturer.
Conclusion
An industrial monitor 1000 nits helps address visibility challenges in bright environments, while a suitable enclosure and touchscreen configuration support demanding industrial installations. INNODA's 15.6-inch, 18.5-inch, and 21.5-inch monitors offer 1000–1500 nits brightness, Full HD resolution, multiple touch options, and flexible mounting choices. By confirming the required IP rating, interface compatibility, and operating conditions, you can choose a display that fits your marine or outdoor project.
CTA
Contact INNODA through its official contact page to discuss your application, required screen size, brightness, touchscreen technology, enclosure protection, and OEM/ODM customization needs. Request the relevant specifications and certification documents before finalizing your selection.
